HSJB — High Security Junction Box

Description

HSJB — High Security Junction Box

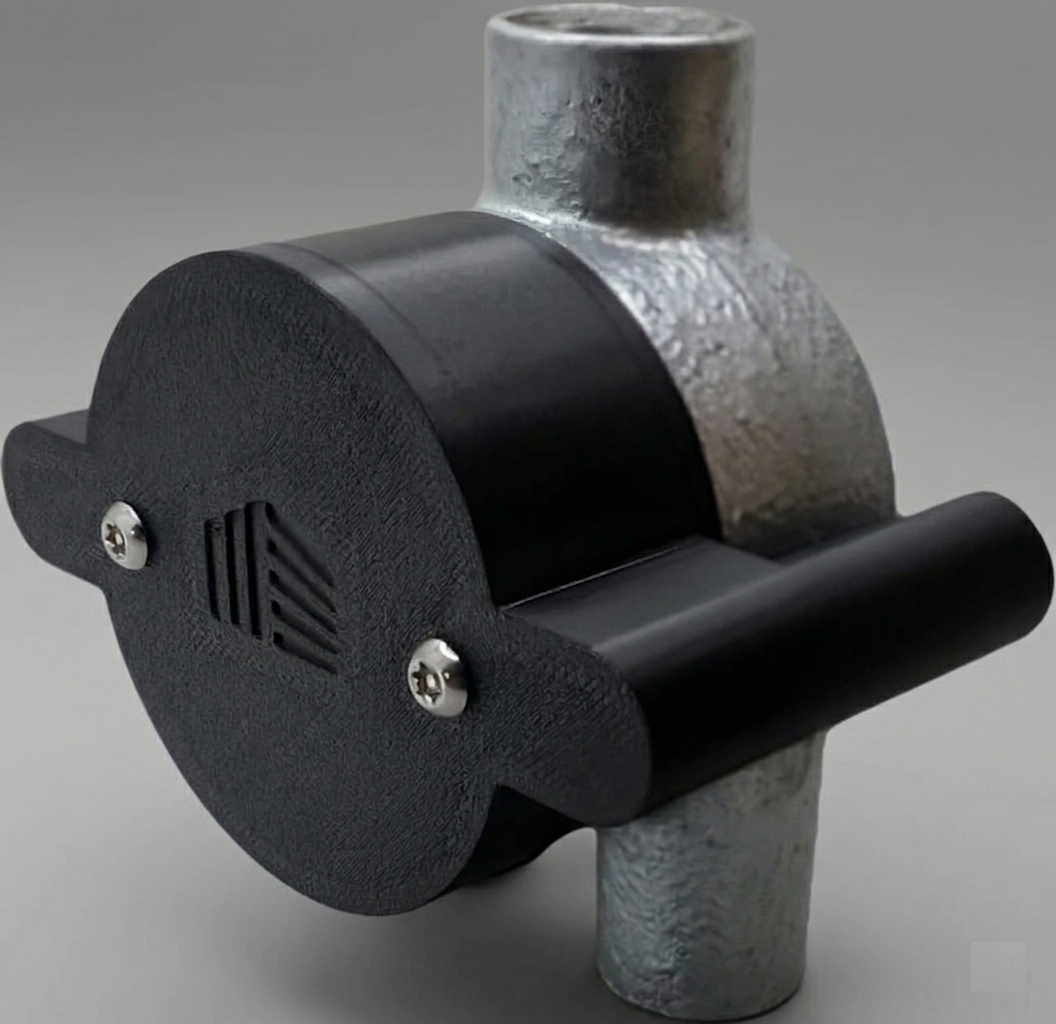

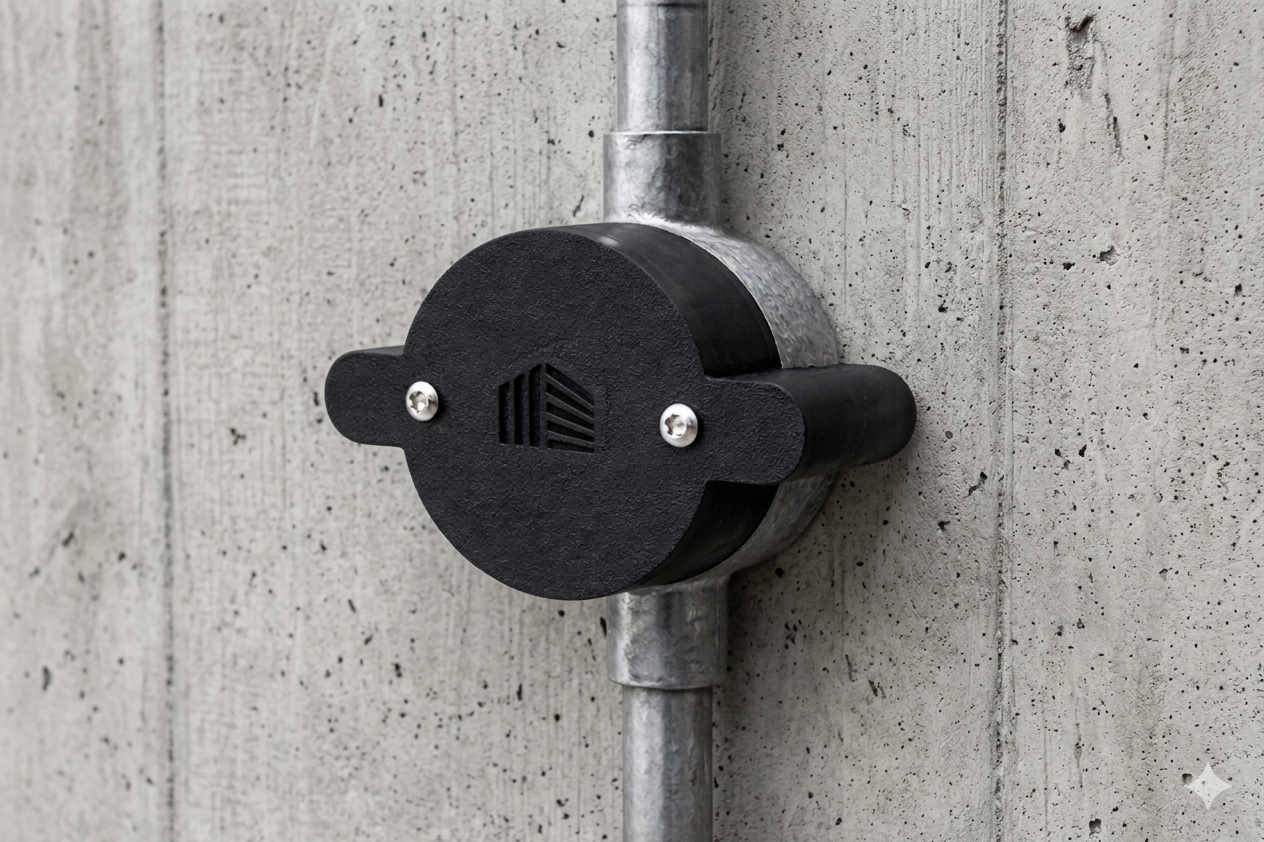

The HSJB is a tamper-monitored junction box that retrofits directly to standard conduit boxes. It upgrades existing field joints into tamper-detecting enclosures for Grade 3 environments — with no conduit modification required.

The HSJB has been independently tested by BRE Global against selected clauses of BS EN 50131-3, commensurate with Grade 3, Type B ancillary equipment (report P130175). All tests passed: tamper protection, tamper detection on both opening and removal, 5 joule impact to the IK08 test method, and IP40 ingress protection. Read the full BRE test report (PDF).

Manufactured additively in the UK to fixed, repeatable print profiles — the BRE results demonstrate that production-grade additive manufacturing is a legitimate process for security applications.

Why Installers Choose HSJB

No Modification to Existing Containment

• Fits to any standard conduit box using only two additional screws — drill guide provided

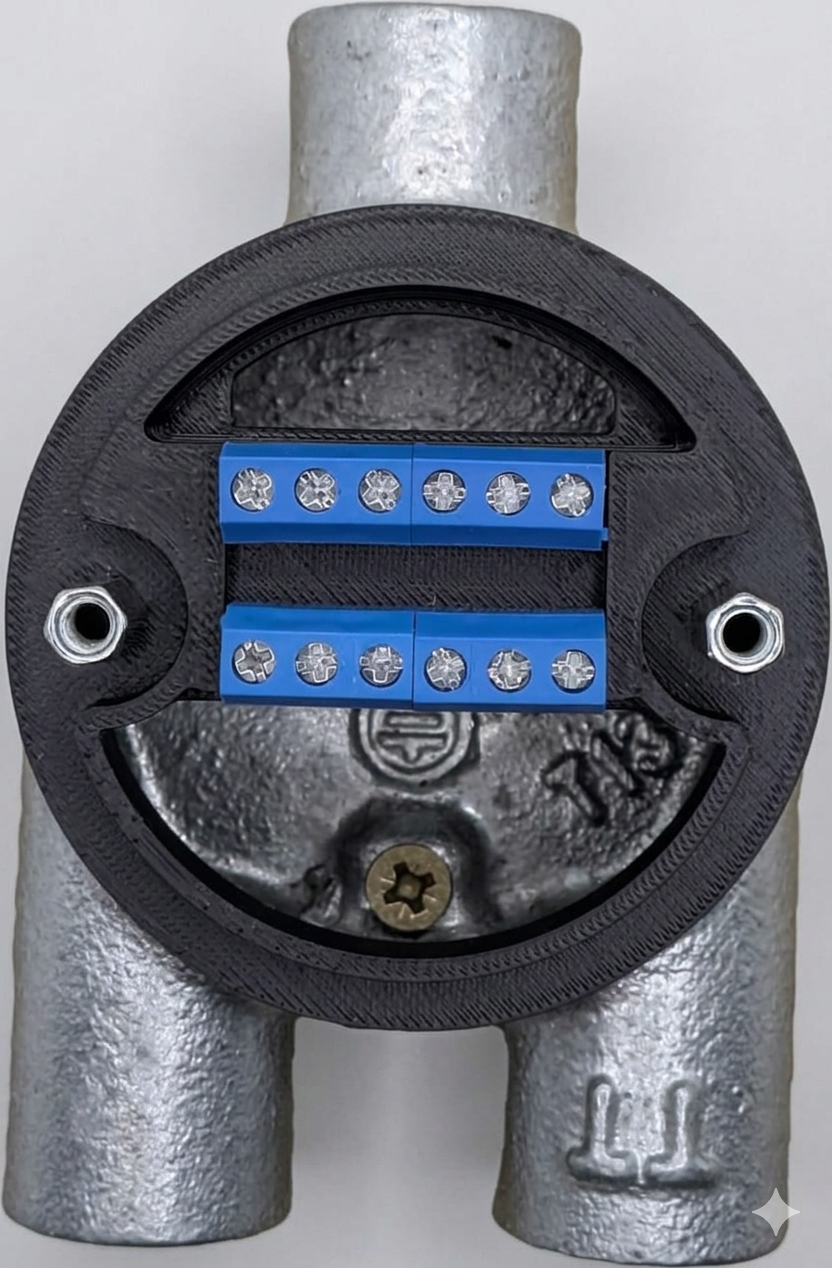

• Removable 12-point terminal block for fast, clean cable termination on site

Independently Tested by BRE Global

• Combined front and rear tamper detection (NC contacts) — tamper alarm generated before access to internal elements was possible
• Passed 5 joule impact testing (IK08 method, BS EN 62262) and IP40 (BS EN 60529)

Reduces Total Install Cost on Grade 3 Installations and Upgrades

• Retrofit to existing containment — eliminates rework and reduces coordination time
• Ideal for upgrade projects where full re-containment isn’t practical or cost-effective

How It Works (Installer Workflow)

1. Fix two screws adjacent to the existing, standard conduit box — drill guide used for positioning
2. Terminate cables and tamper loop into the supplied 12-point terminal block, secured to the conduit box
3. Fit HSJB over the conduit box and secure using two security screws (provided)

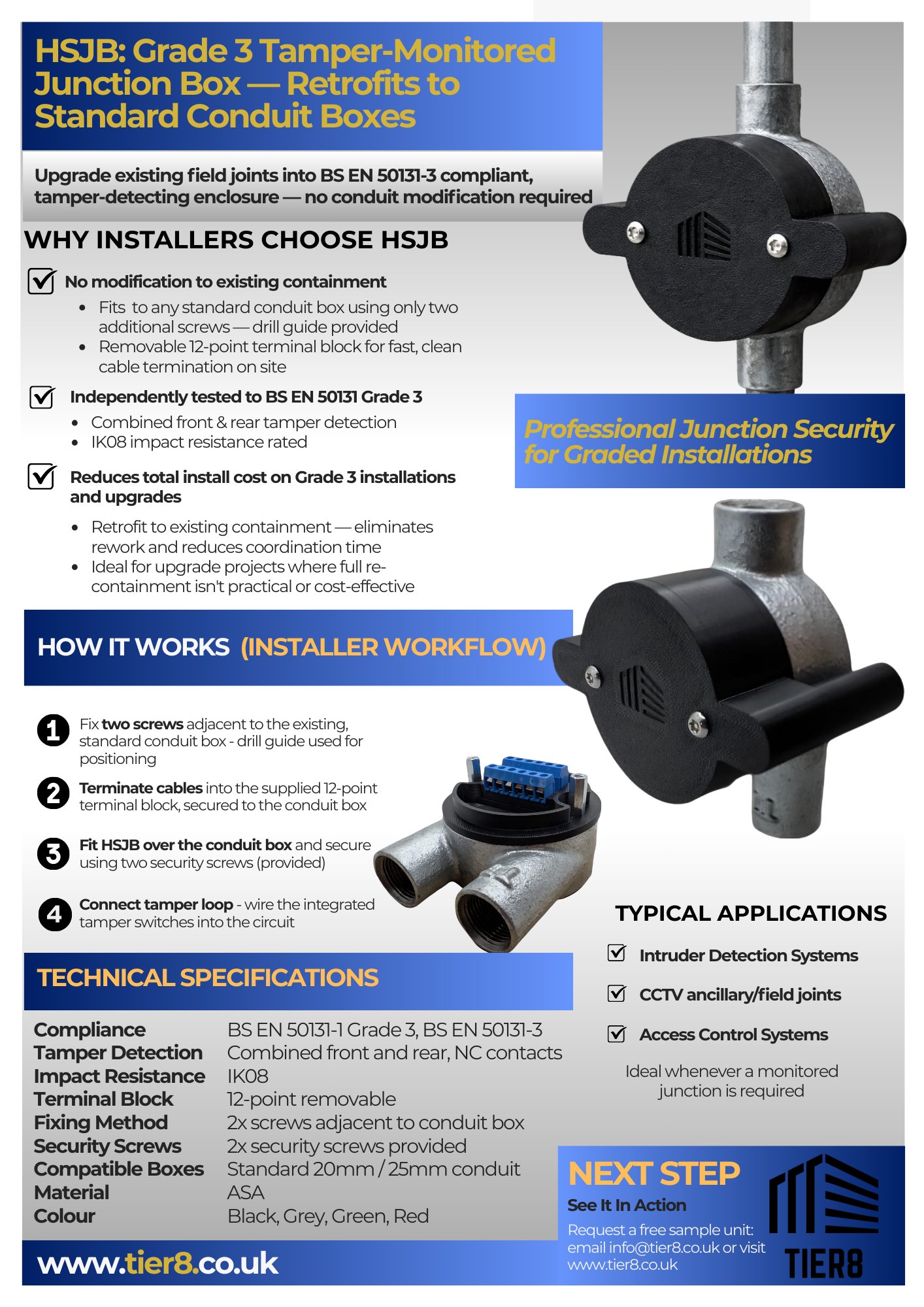

Technical Specifications

Documentation

• BRE Global Test Report P130175, Issue 1 (PDF)
• Installation guide (T8-HSJB-STD-IS)

Typical Applications

• Intruder Detection Systems
• CCTV ancillary / field joints
• Access Control Systems

Ideal whenever a monitored junction is required.

UK manufactured by Tier8 Ltd. Request a free sample unit — email orders@tier8.co.uk
