Galaxy Mounting Plate
£51.99 ex VAT · £62.39 inc VAT
1.5mm powder-coated steel mounting plate for Honeywell Galaxy Dimension panels (including NPSA H1 variant). Provides professional internal mounting space for fuse boards, comms equipment, fibre breakout boxes, and more.
Trade orders — contact us for pricing & stock
Contact for Trade Pricing & StockNext-day delivery available on in-stock quantities · Delivery · 30-day returns · UK manufactured
Description
Galaxy Mounting Plate

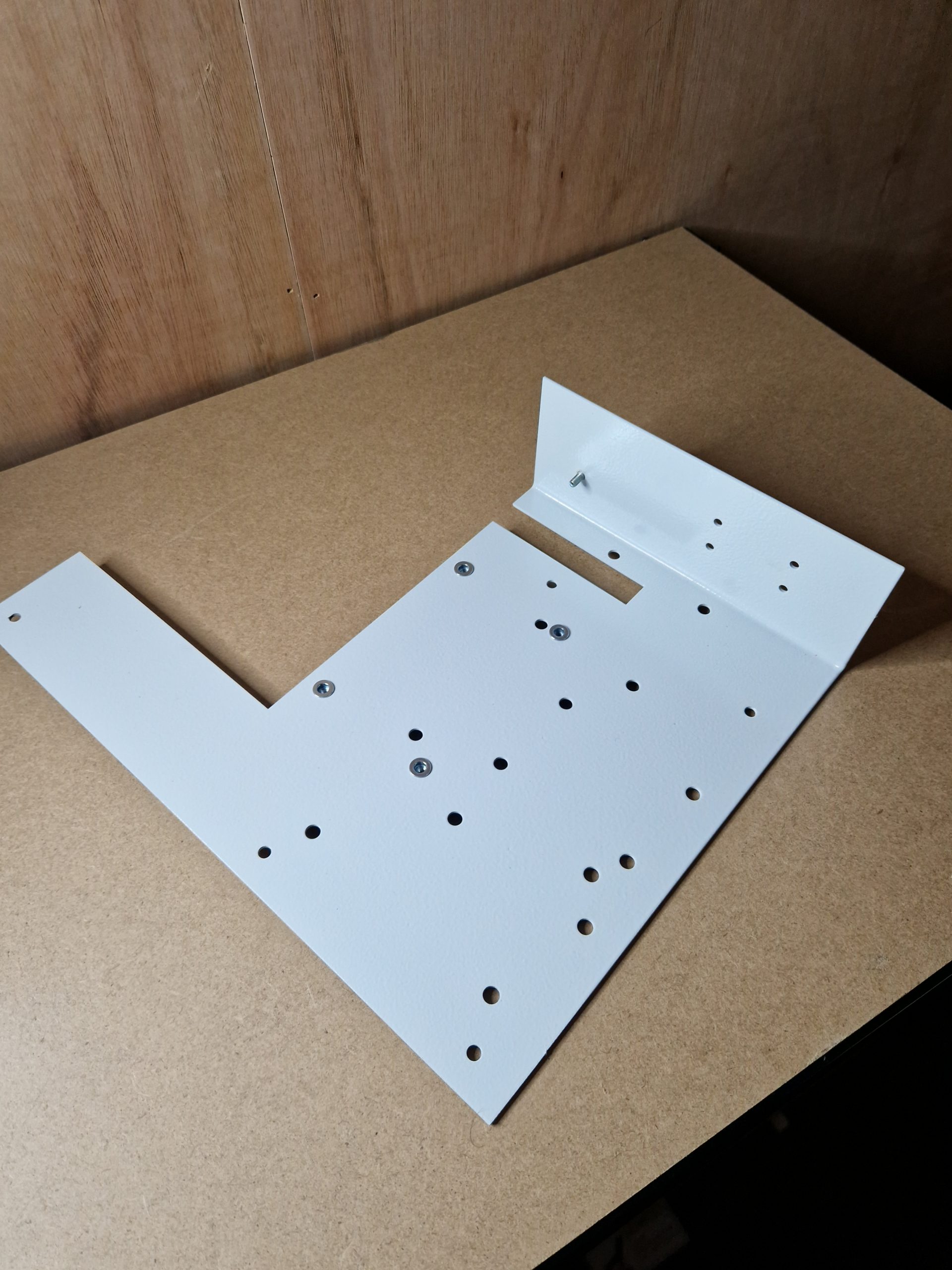

The Galaxy Mounting Plate is a precision-cut 1.5mm steel plate designed to fit inside large Honeywell Galaxy Dimension panels, including the NPSA H1 variant. It provides a clean, professional mounting surface for additional equipment that needs to be housed within the alarm panel enclosure.
Key Features
- Direct fit to Galaxy Dimension — uses 5 existing mounting holes on the panel rear with supplied 5mm standoffs, no drilling or modification required

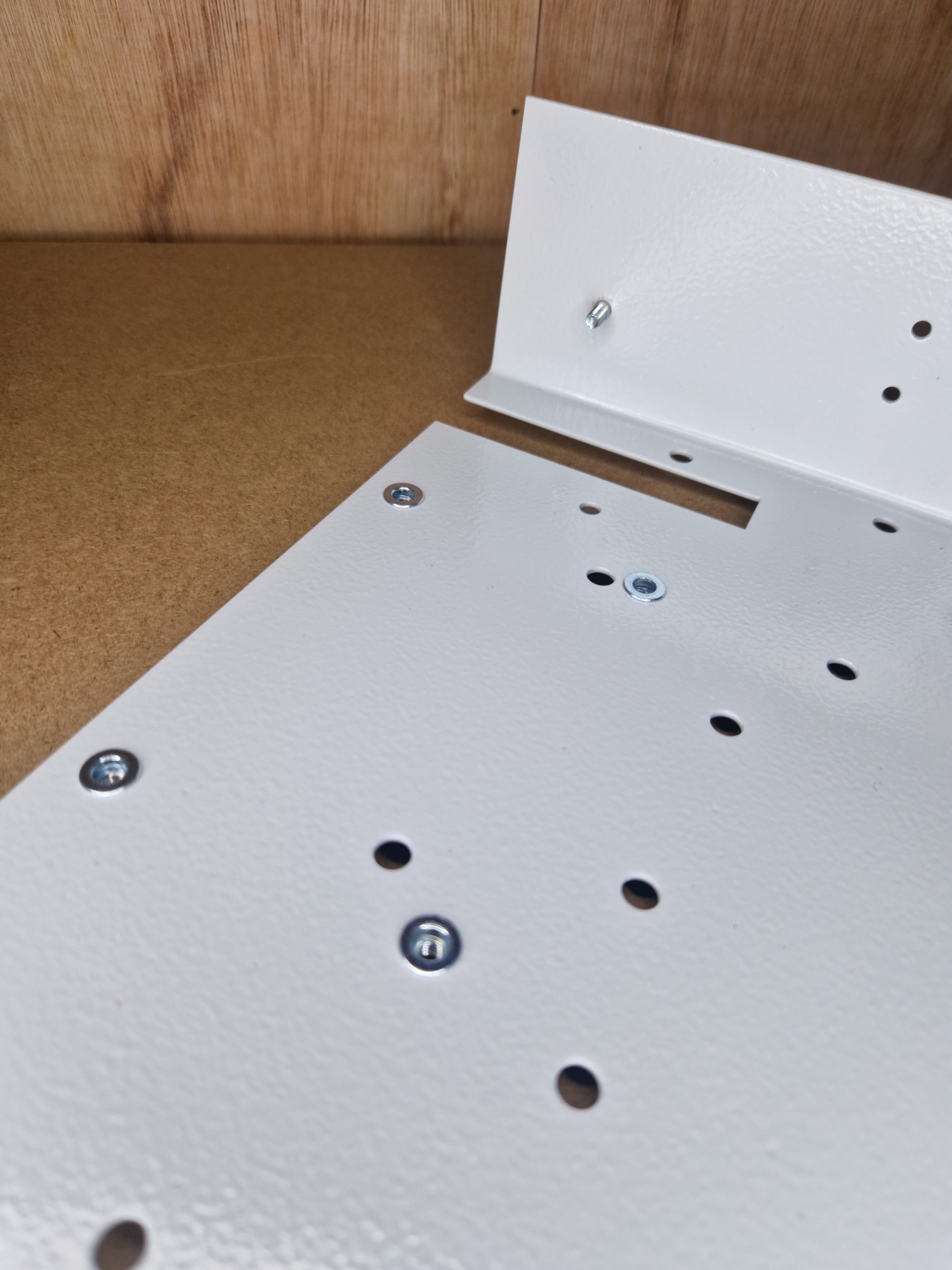

- Raised section (65mm) — allows equipment to be mounted at a higher level to avoid clashing with the main panel PCB and existing components

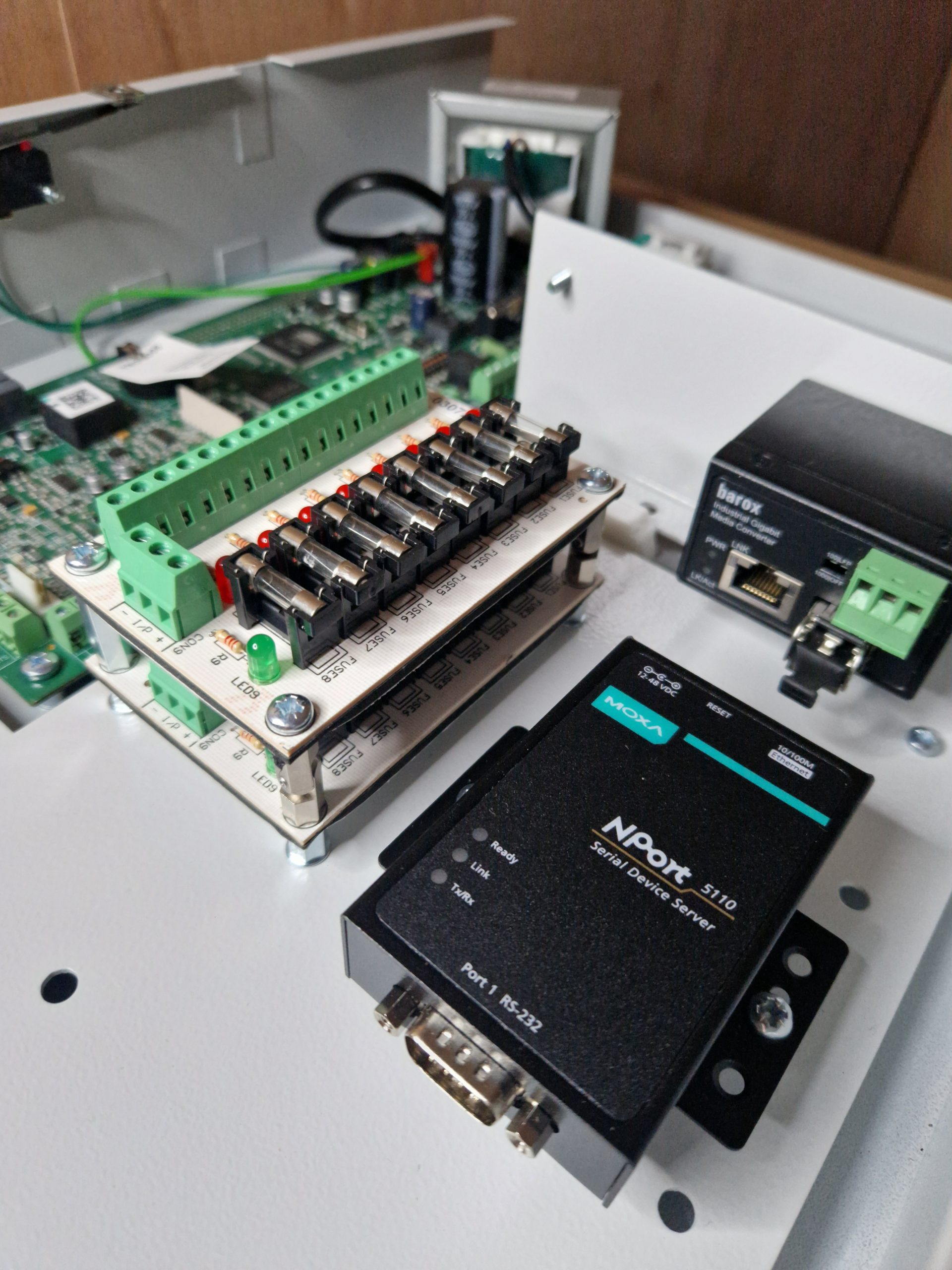

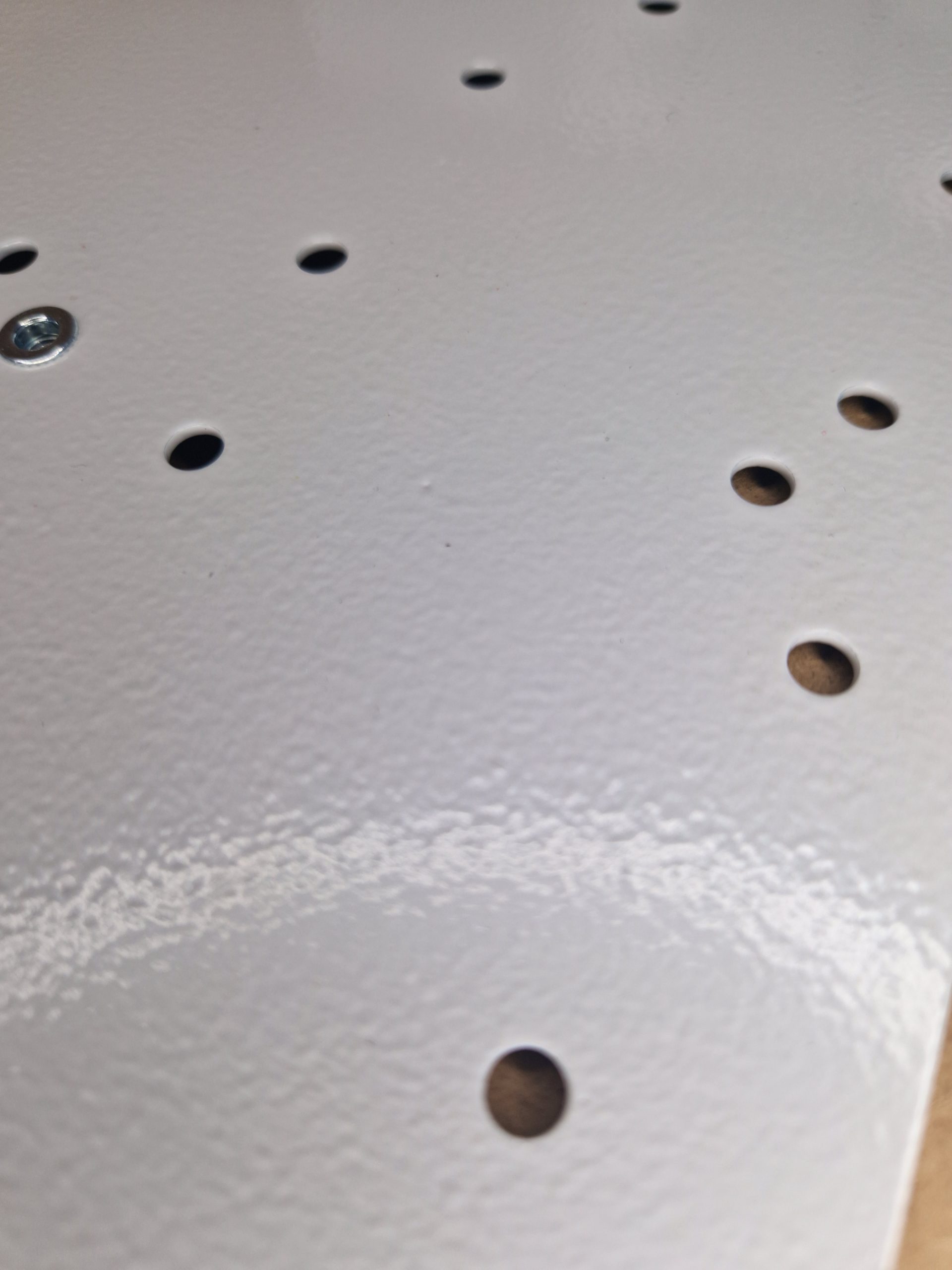

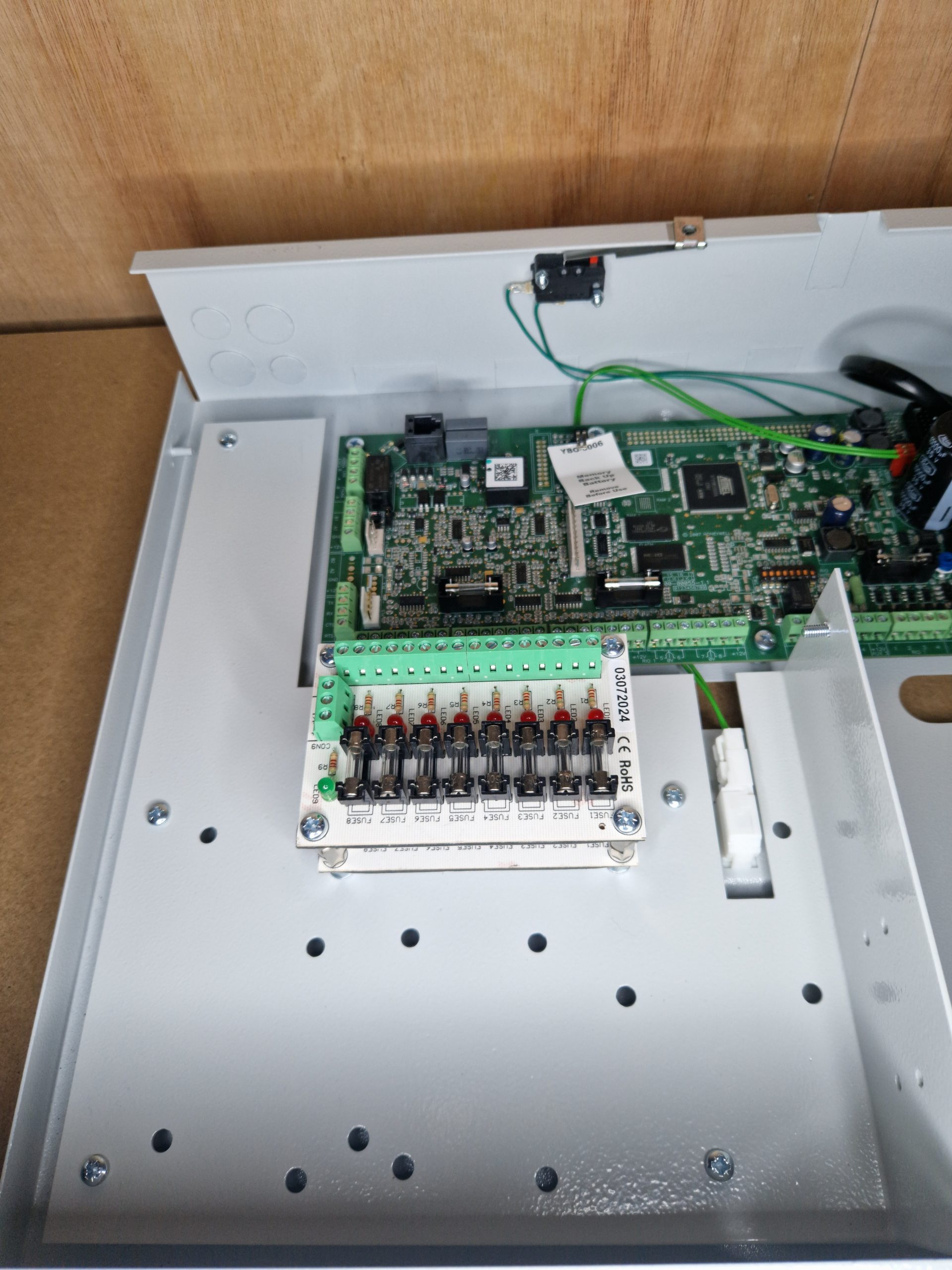

- Multiple pre-drilled holes — suit common equipment layouts including fuse boards, RS232 converters, Galaxy RS232 PCBs, fibre breakout boxes, and ethernet-to-fibre converters
- M4 captive nut compatible — holes accept M4 captive nuts for standoffs, or standoffs can be rear-fixed
- M4 earth lug — included on the plate for proper earthing
- Matched finish — powder coated RAL 9002 (Grey White) to match the Honeywell Galaxy enclosure
Technical Specifications
| Dimensions | 269.5 x 305mm, raised section 65mm |
| Material | 1.5mm steel |
| Finish | Powder coated RAL 9002 (Grey White) |
| Compatibility | Honeywell Galaxy Dimension (including NPSA H1 variant) |
| Fixing | 5 existing panel mounting holes, 5mm standoffs supplied |
| Earth | M4 earth lug |
What’s Included
- Galaxy Mounting Plate
- 5mm rear-fixed standoffs
Custom Options
Need a variant for a different Galaxy panel, or custom hole locations to suit your proposed equipment layout? Get in touch — we can design a plate to your specification.
UK manufactured by Tier8 Ltd.
Additional information
| Weight | 1.000 kg |
|---|---|
| Dimensions | 30.5 × 26.95 × 6.5 cm |
| Compatibility | Honeywell Galaxy Dimension, Galaxy Dimension NPSA H1 |
| Finish | RAL 9002 (Grey White) |
